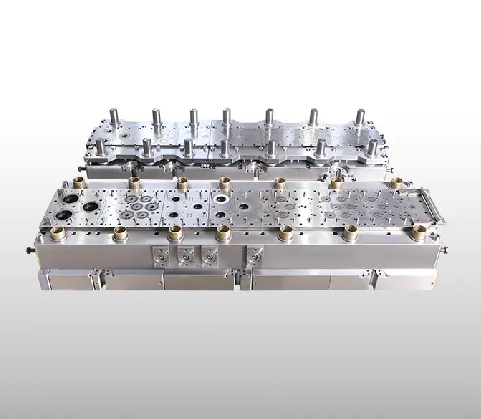

Progressive Stamping Mold Maker for Motor Cores

Motor core production depends on precision tooling. A progressive stamping mold manufacturer builds the dies that punch stator and rotor laminations from steel strip. Unlike standard stamping tools, these molds are fully customized. Every motor design requires its own unique die.

What makes progressive molds different

A progressive mold performs multiple operations in one stroke. The strip moves through stations. Each station adds a cut or a form. By the final station, a finished lamination separates from the strip. This approach is fast and consistent.

A progressive stamping mold manufacturer designs each station carefully. Pilot holes establish registration. Slot punches open the magnetic paths. The center hole and outer contour come later. Stacking features may be added in-die. The sequence matters.

Customization for motor cores

Stator and rotor shapes vary widely. Some have skewed slots. Others need balanced mass. A progressive stamping mold manufacturer works from your part drawing or sample. They do not have off-the-shelf solutions for motor laminations.

The mold must account for material behavior. Silicon steel springs back after cutting. A progressive stamping mold manufacturer adjusts clearances to compensate. Too much clearance creates burrs. Too little causes premature wear.

Multi-row efficiency

Single-row molds cut one lamination per stroke. Double-row or triple-row molds cut two or three. A skilled progressive stamping mold manufacturer can nest parts efficiently across the strip width. More rows mean more parts per minute.

However, multi-row molds are wider and more complex. The progressive stamping mold manufacturer must balance cutting forces across the tool. Uneven loads to misalignment or early failure.

Materials and durability

The steel used in the mold determines its lifespan. A quality progressive stamping mold manufacturer selects tool steel grades based on your production volume. High-volume dies need carbide inserts or coated surfaces. Lower volume tools may use conventional tool steel.

Heat treatment is part of the process. A progressive stamping mold manufacturer ensures critical components reach the correct hardness. Too soft, and edges roll over. Too hard, and cracking may occur.

In-die operations

Many motor cores require stacking after stamping. A progressive stamping mold manufacturer can add in-die riveting. The die punches a small interlock on each lamination. Layers snap together automatically during stamping.

Some molds include rotation features. The progressive stamping mold manufacturer adds a mechanism that turns every other lamination slightly. This reduces core loss and improves motor efficiency. Additional operations inside the die eliminate secondary processing.

Lead time and collaboration

Building a progressive mold takes weeks, not days. A reliable progressive stamping mold manufacturer provides a realistic schedule. Design, material sourcing, machining, heat treatment, assembly, and tryout all take time.

Expect questions from the progressive stamping mold manufacturer during the design phase. They may ask about your press equipment, strip width, or annual volume. These questions help them build a mold that works in your specific environment.

After delivery

The relationship continues after the mold ships. A good progressive stamping mold manufacturer offers sharpening services and spare parts. They keep records of your tooling. When you call with a problem, they pull up your file.

Motor core molds are investments. Choose a progressive stamping mold manufacturer with relevant experience. Ask about their work on similar stator and rotor designs. Request references from other motor manufacturers. The right partner makes your production line more reliable.
